CDL Fuel Tank and Exhaust Inspection: Leaks, Mounts and Fire Risks

Fuel and exhaust defects often leave clues before they become emergencies: a dark wet line below a fitting, a polished tank strap, soot around a joint, a broken hanger or heat-damaged wiring. A disciplined walkaround connects those clues to three questions: Is it leaking? Is it securely mounted? Is heat or fuel reaching a place it should not?

The federal equipment rules provide a useful framework. 49 CFR 393.65 covers fuel-system location, tank attachment and protected routing of fuel lines. 49 CFR 393.67 adds liquid-fuel-tank standards, including a securely fastened filler cap.

For exhaust, 49 CFR 393.83 addresses routing, discharge, leaks, temporary repairs and secure fastening. Appendix A to 49 CFR part 396 supplies federal minimum periodic-inspection rejection items for both systems. A driver’s pre-trip is not the annual inspection, but those objective defects are valuable stop-and-report signals.

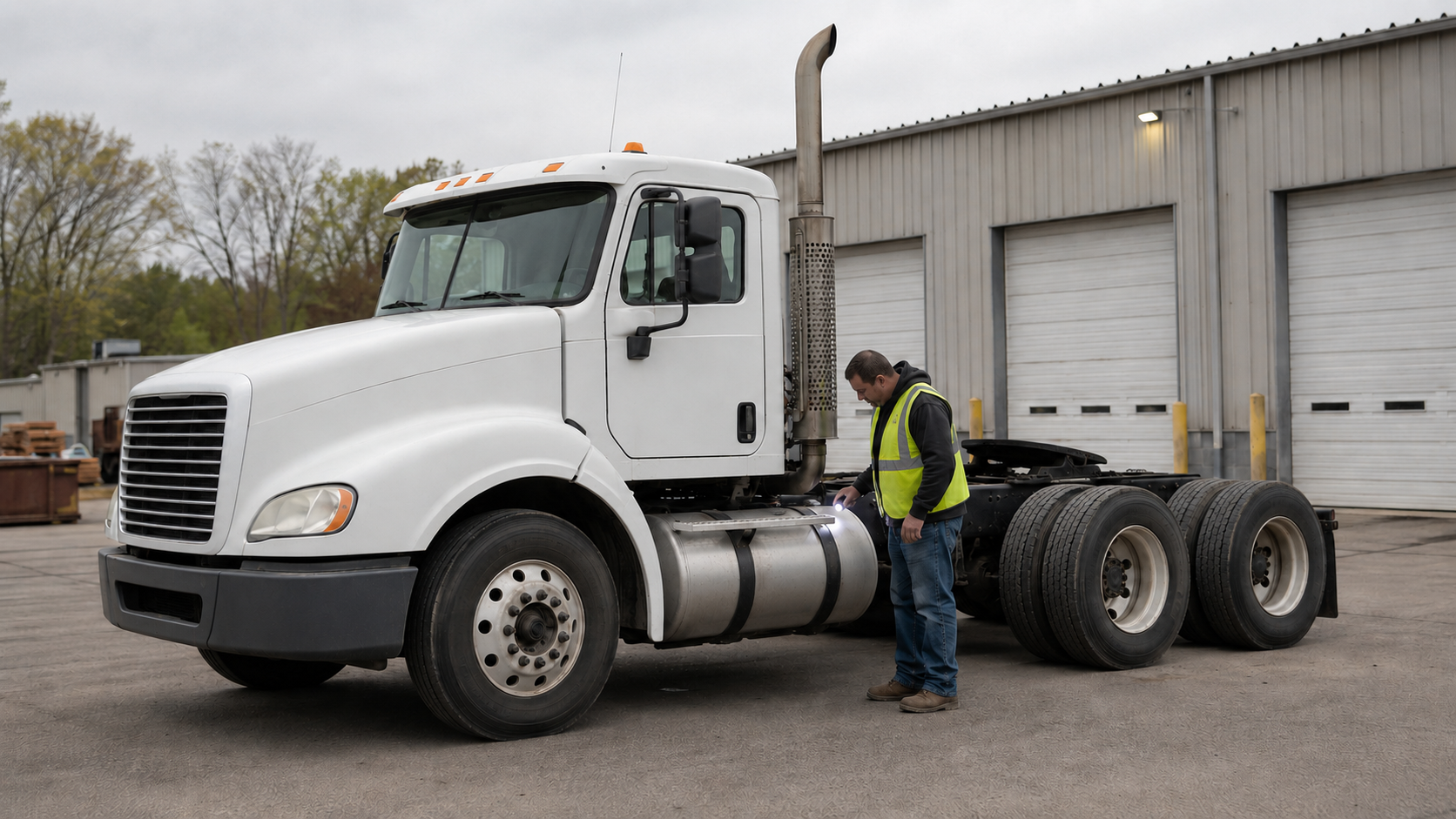

Start with a safe inspection setup

Park on firm, level ground, set the parking brakes, place the transmission in the proper parked position and shut down the engine when the carrier procedure calls for it. Remove smoking materials and other ignition sources. Give hot exhaust parts time to cool. Wear the protective equipment required for the yard or shop.

Use a flashlight; never use a flame to search for a leak. Do not slide under a vehicle unless it is properly secured and the inspection is part of an approved procedure. Do not touch an unknown liquid or open a hot, pressurized or leaking component. If there is a strong fuel odor, active dripping, vapor, smoke or unusual heat, step away, control the area and follow the carrier’s emergency process.

Follow a repeatable fuel-system route

Begin at the tank body and move in the same order on every truck:

1. Tank shell, end caps and visible seams
2. Filler neck, cap and surrounding drain area
3. Mounting straps, brackets, bolts and isolator pads
4. Visible supply, return, crossover and vent lines
5. Fittings, valves and protected line routing
6. Frame, steps, deck plate and ground below for secondary clues

On a dual-tank tractor, complete one side before crossing to the other. Compare the systems, but do not assume the opposite side proves what “normal” should look like; a shared installation error can exist on both sides.

1. Inspect the tank body and filler cap

Scan the tank from top to bottom with overlapping flashlight passes. Look for wetness, fresh drips, streaks that begin at a seam or fitting, heavy corrosion, a sharp dent, a puncture, an abrasion groove or evidence of contact with another component. Check the pavement directly below and follow any wet trail upward to its highest visible point.

Road spray and recently spilled fuel can resemble a system leak. The response is not to guess. Note the color, odor only from a safe distance, exact starting point and whether new liquid appears after the surface is observed under the approved procedure. A visible fuel-system leak is a rejection item in Appendix A.

Inspect the filler neck and cap. The cap must be present and capable of fastening securely. Look for a damaged neck, crossed threads, a broken latch, missing sealing material or a cap that rocks after it is properly installed. Do not force an unfamiliar cap or substitute a rag, tape or makeshift plug.

2. Check straps, brackets and tank movement clues

Section 393.65 requires a fuel tank to be securely attached in a workmanlike manner. Appendix A identifies loose, broken or missing mounting bolts or brackets as a failed-inspection condition, while noting that some designs use springs or rubber bushings to permit intended movement.

Inspect every visible strap, bracket, bolt and isolator. Look for a cracked strap, missing fastener, shiny metal where parts have been rubbing, rust powder below a moving joint, a shifted pad, elongated hole or tank sitting out of alignment. Never climb on, kick or pull hard against the tank to “test” it. Use only the carrier-approved method and let qualified maintenance determine whether observed movement is by design.

3. Trace lines and fittings without touching a leak

Follow each accessible fuel line as far as you can see. Section 393.65 requires lines to accommodate normal movement and be secured against chafing, kinking and other mechanical damage. Diesel crossover, return and withdrawal lines extending below the tank or sump must be protected against impact.

Look for wet fittings, loose-looking supports, a hose twisted against a bracket, a flattened section, exposed reinforcement, abrasion, a hard bend or a low loop vulnerable to road debris. Confirm that clips and protective sleeves are present where designed. Pay attention where a line crosses the frame, passes near a sharp edge or changes between a moving powertrain component and the chassis.

Do not tighten a fitting or move a line unless you are trained, authorized and following the maintenance procedure. Disturbing a pressurized or damaged connection can enlarge the leak and erase evidence that helps a technician find the cause.

Keep fuel away from exhaust and electrical sources

Section 393.65 requires the fuel system to be positioned so fuel spilled vertically during filling will not contact the exhaust or electrical systems, apart from the fuel-level indicator assembly. Section 393.83 likewise prohibits exhaust-system placement likely to burn, char or damage the fuel supply, wiring or another combustible part.

Inspect the space between the tank, fill area, wiring looms and exhaust components. Look for missing shields, melted loom, browned paint, brittle insulation, fuel staining near a hot surface, an exhaust part shifted toward the tank or a clamp edge rubbing a line. Treat this as a relationship check: each component may appear intact alone but still be unsafe if clearance or shielding has changed.

Inspect the exhaust from front to outlet

Begin only when the system is cool enough for the approved inspection. From a safe viewing position, trace accessible pipe, flexible connector, aftertreatment housing, clamps, hangers, shields, stack and outlet. On a modern diesel truck, identify parts by the vehicle documentation rather than guessing from shape.

Look for cracked pipe, separation at a joint, missing or loose clamp hardware, broken hanger, damaged flexible section, a shifted heat shield, impact damage, temporary wrap or patch material, and an outlet that has moved from its intended position. Exhaust hangers may allow planned heat expansion and chassis movement, so do not mistake every compliant flexible mount for looseness.

Use soot, sound and heat as location clues

Dry black soot fanning outward from a joint can mark escaping exhaust. A sharp ticking or puffing sound may change with engine speed. Heat discoloration, melted nearby material or a strong exhaust odor near the cab can also signal a problem. These are clues—not permission to run an unsafe system merely to confirm the leak.

Section 393.83 prohibits a leak or discharge forward of or directly below the driver or sleeper compartment. It also bars temporary wrap or patch repairs and requires the system to be securely fastened. Appendix A rejects an exhaust leak forward of or directly below the driver/sleeper compartment and unsafe placement that could damage wiring, fuel supply or combustible material.

Confirm the outlet and discharge location

A truck or truck-tractor exhaust must discharge behind the cab or, when it projects above the cab, near the rear of the cab. The discharge cannot be immediately below the fuel tank or filler pipe. Inspect the outlet for crushing, blockage, a loose rain cap if equipped, soot at an unintended opening and evidence that exhaust is directed toward fuel, wiring, body material or the occupied compartment.

Do not apply passenger-bus outlet measurements to a tractor. Vehicle type matters, and state rules, manufacturer design and carrier procedure can add requirements.

DEF is related to emissions, but it is not diesel fuel

Many tractors place the diesel exhaust fluid tank near the fuel tank. Keep the terminology and inspection findings separate. Check the DEF reservoir and cap for secure mounting and damage, and inspect visible lines for leakage or heavy white crystallized residue under the manufacturer’s instructions. Do not pour diesel fuel into the DEF tank or DEF into the diesel tank. If contamination is suspected, do not start the engine; report it immediately and follow the approved service procedure.

Stop, secure and report these defects

• Any visible fuel-system leak, active drip or spreading wet area
• A missing cap or a cap that cannot fasten securely
• A loose, broken or missing tank strap, bracket or mounting fastener
• A damaged, kinked, chafed, unsupported or unprotected fuel line
• Fuel staining or a line routed near damaging heat, wiring or sharp edges
• Cracked, separated or leaking exhaust components
• A temporary exhaust wrap or patch
• A broken hanger, insecure exhaust part or shifted heat shield
• Exhaust leakage or discharge forward of or directly below the cab or sleeper
• An outlet positioned immediately below the fuel tank or filler pipe
• Soot, heat damage, smoke or odor suggesting exhaust is reaching the cab or combustible material

Describe evidence rather than diagnosing beyond what you can verify. “Fresh diesel wetness at the driver-side tank’s forward upper fitting; one drop formed during observation” gives maintenance a reproducible starting point. Record the location, condition and urgency through the carrier’s defect-reporting process.

A six-step memory check: Dry, Capped, Secure, Protected, Tight, Clear

1. Dry: no visible fuel leak or fresh wet trail.
2. Capped: the filler neck and secure cap are intact.
3. Secure: tank straps, brackets and fasteners are sound.
4. Protected: fuel lines are supported and guarded from impact, chafing and kinks.
5. Tight: exhaust joints, clamps, hangers and shields show no failure clues.
6. Clear: exhaust heat and discharge remain away from fuel, wiring, combustible parts and occupied space.

Practical takeaways

• Inspect on level ground with the truck secured, ignition sources controlled and hot components given time to cool.
• Scan the ground and follow every wet or sooty trail upward to its highest visible point.
• Check the tank, cap, mounting system and visible lines as separate parts of one fuel system.
• Judge clearance and routing—not only whether each component exists.
• Treat soot, ticking, heat damage and odor as defect clues that require a safe response.
• Never accept a temporary exhaust wrap or patch as a compliant repair.
• Report exact location and evidence; leave repair and compliance decisions to authorized personnel.
